Caching
Caching is a technique that stores the result of a previously completed task, so that it can be reused when the same computation or data access is needed again. Instead of repeating work, the system retrieves a saved result, thereby reducing runtime and redundant effort.
While batching eliminates repeated work across tasks in the same epoch, caching focuses on redundant work across time—reusing results across multiple epochs, requests, or executions.
1. Definition with Visual Example
Caching replaces repeated computation or access with a cheaper lookup task.
For example:
- Without caching, computing a result (e.g., permission checks, network routing) happens every time.
- With caching, the result is stored and reused if the input or access pattern matches.
Caching is particularly effective when the same task appears repeatedly in sequential execution, especially across multiple epochs.

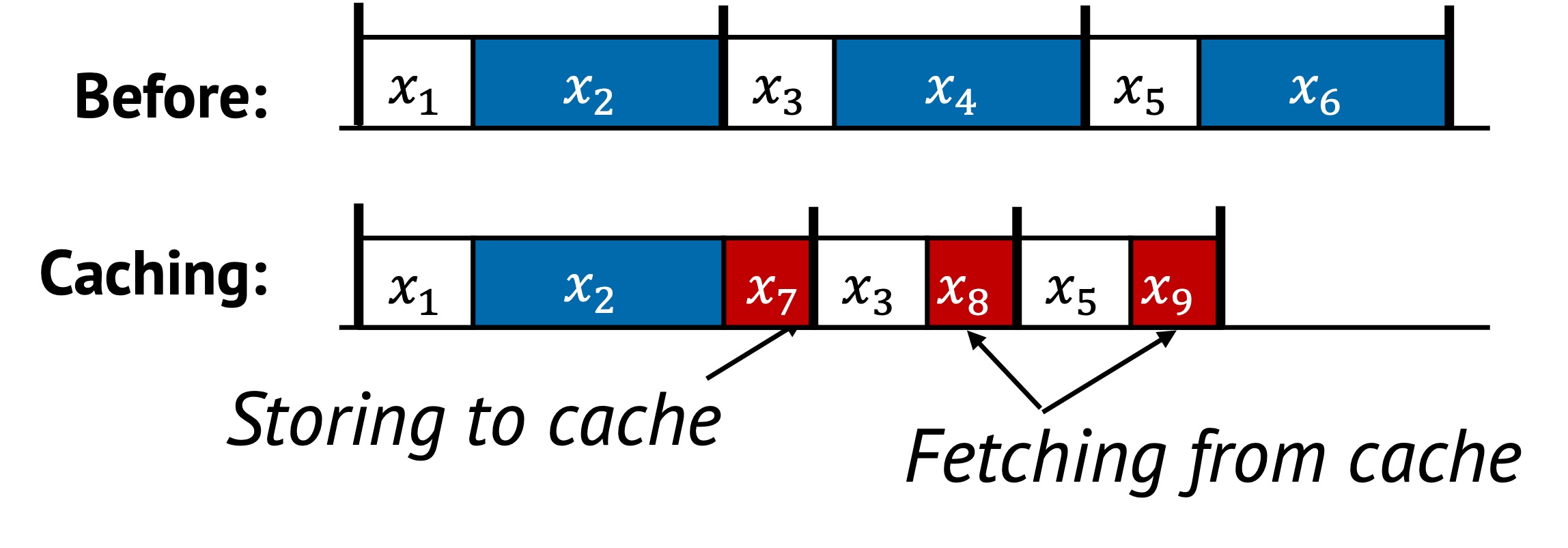

In this example:
- The original execution repeats , , and every epoch.
- Caching first executes and stores its result as . This represents the additional cost of caching (e.g., writing to memory).
- Later, instead of re-computing and , the system performs simple lookups, represented as and .
- These lookups are significantly cheaper than the original computations.
By avoiding full re-execution of and , caching saves total runtime across epochs—as long as the caching overhead (, , ) is less than the cost of the original tasks.
2. Underlying Principles
Caching primarily applies the replacement principle by substituting repeated computations with cheaper lookups.
3. Conditions for Effective Caching
Caching is effective when:
Where:
- , are original task costs
- is the cost to populate the cache
- , are the cost of retrieving cached results
Caching should only be used when:
- The overhead of maintaining the cache is less than the cost of repeated computation
- There is a high chance of reuse (temporal locality)
4. When to Apply
From our analysis, we observed three common ways caching is applied in real systems. These reflect where and how caching is introduced to maximize reuse and reduce redundant computation.
1. Introducing a New Caching Layer
This is the most straightforward approach. A caching layer is added on top of an existing system or component to intercept expensive operations. For example, adding a read cache to a file system improves performance by avoiding repeated disk reads.
This technique works well when:
- The system’s logic is stable and cacheable
- Repeated accesses happen at a higher layer (e.g., middleware, clients)
By layering caching externally, performance improves without modifying core logic.
2. Modifying the System to Expose Reuse
Sometimes, caching opportunities are hidden because the system’s structure doesn’t separate reusable computations from non-reusable ones. In these cases, modifying the internal logic can make reuse more explicit and accessible.
For example, decoupling permission checks from directory lookups1 allows the system to cache the result of permission validation independently, even if the path structure changes. Similarly, separating expensive parsing from request routing enables selective caching of parsed metadata.
This approach requires changes to internal components, but it often leads to finer-grained reuse and better cache hit rates — especially in low-level systems where performance is critical.
3. Designing a Cache Policy
Even with caching in place, performance depends heavily on choosing what to cache and when. A well-designed cache policy maximizes benefit while minimizing memory usage and consistency risk.
For example, an LRU (Least Recently Used) policy retains the most frequently accessed data, which works well in systems with temporal locality. In key-value stores, selectively caching hot keys based on access frequency improves lookup latency.
Effective policies often adapt to workload patterns, dynamically adjusting what is kept in cache and what is evicted, making the difference between helpful and harmful caching.
These three strategies—layering, refactoring, and policy—represent the most common ways caching is adopted and optimized in real systems. Many implementations combine them, starting with a layer and then refining reuse and policies over time.
5. Examples from Real Systems
System | Description |
---|---|
Drizzle (SOSP’17) | Reuse scheduling decisions across micro-batches as computation is largely static and undergoes infrequent changes. |
Protean (OSDI’20) | Cache previous virtual machine allocation result and reuse the placement across multiple requests. |
Tasi et al. (SOSP’15) | Decouple permission checking from locating a directory and memoizes permission check resuls to enable fast path. |
NetCache (SOSP’17) | Uses programmable switches to cache hot items in the network dataplane, reducing latency in key-value lookups. |
Additional Notes
- Caching is sometimes layered: intermediate layers cache partial results, upper layers cache full responses.
- Managing cache consistency is crucial. Stale or invalid entries can lead to incorrect behavior.
- Eviction policy (e.g., LRU, LFU, TTL) plays a key role in keeping the cache useful and efficient.
Up next: Precomputing →
-
Chia-Che Tsai, Yang Zhan, Jayashree Reddy, Yizheng Jiao, Tao Zhang, and Donald E. Porter. 2015. How to get more value from your file system directory cache. In Proceedings of the 25th Symposium on Operating Systems Principles (SOSP ’15). Association for Computing Machinery, New York, NY, USA, 441–456. https://doi.org/10.1145/2815400.2815405 ↩
